SPEC NO: DSAF1085 REV NO: V.7A DATE: DEC/07/2011 PAGE: 4 OF 5
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: H.L.Ding ERP: 1203012853
APD3224SECK-F01

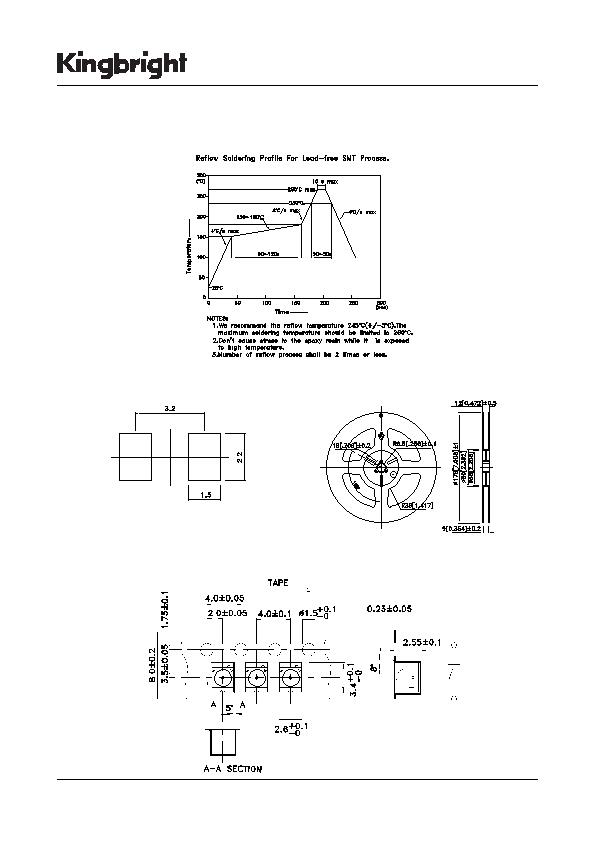

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ?0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
